Detached House Tiel
Tiel, The Netherlands
Project information
Location: Tiel, The Netherlands
Project type: Residential
Structural system: Four-way spanning filigree slab floors
Structural scope: Precast filigree slab floors
Project overview
The project comprises a detached residential house in Tiel featuring filigree slab (lattice girder slab) floor systems at the first and second floor levels.

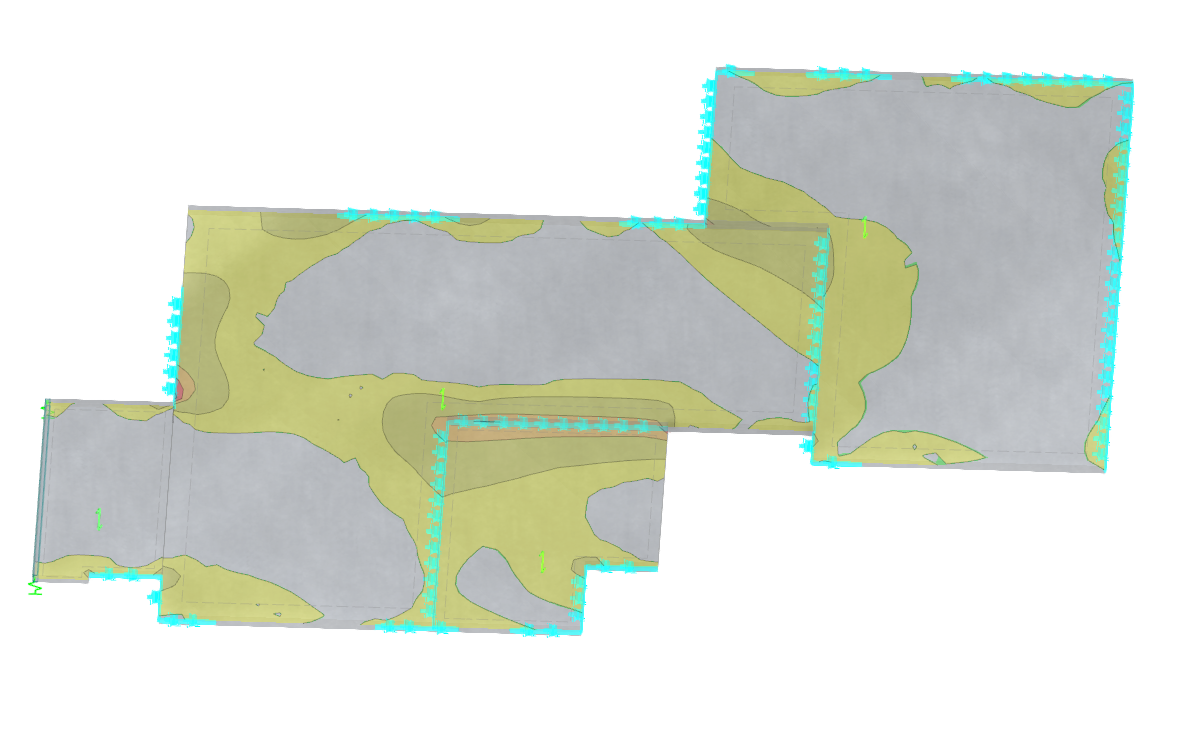

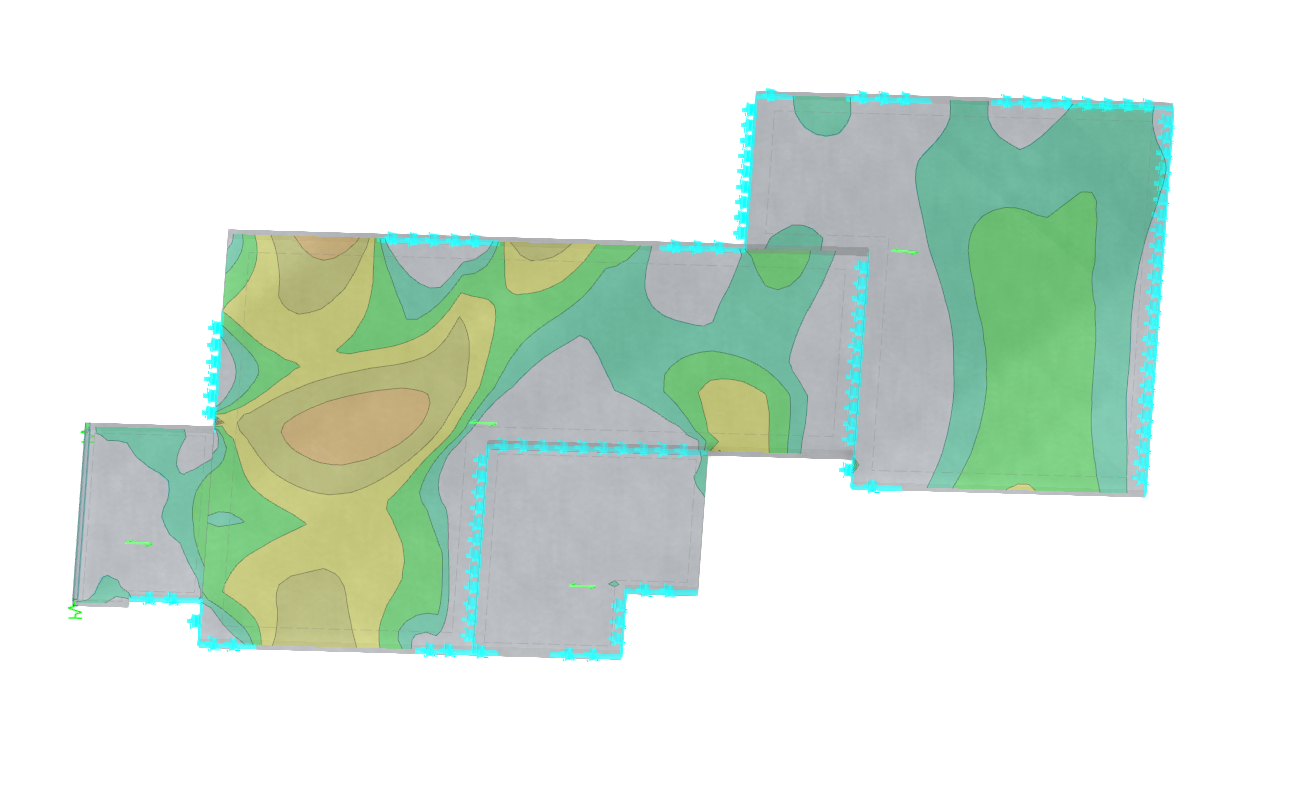

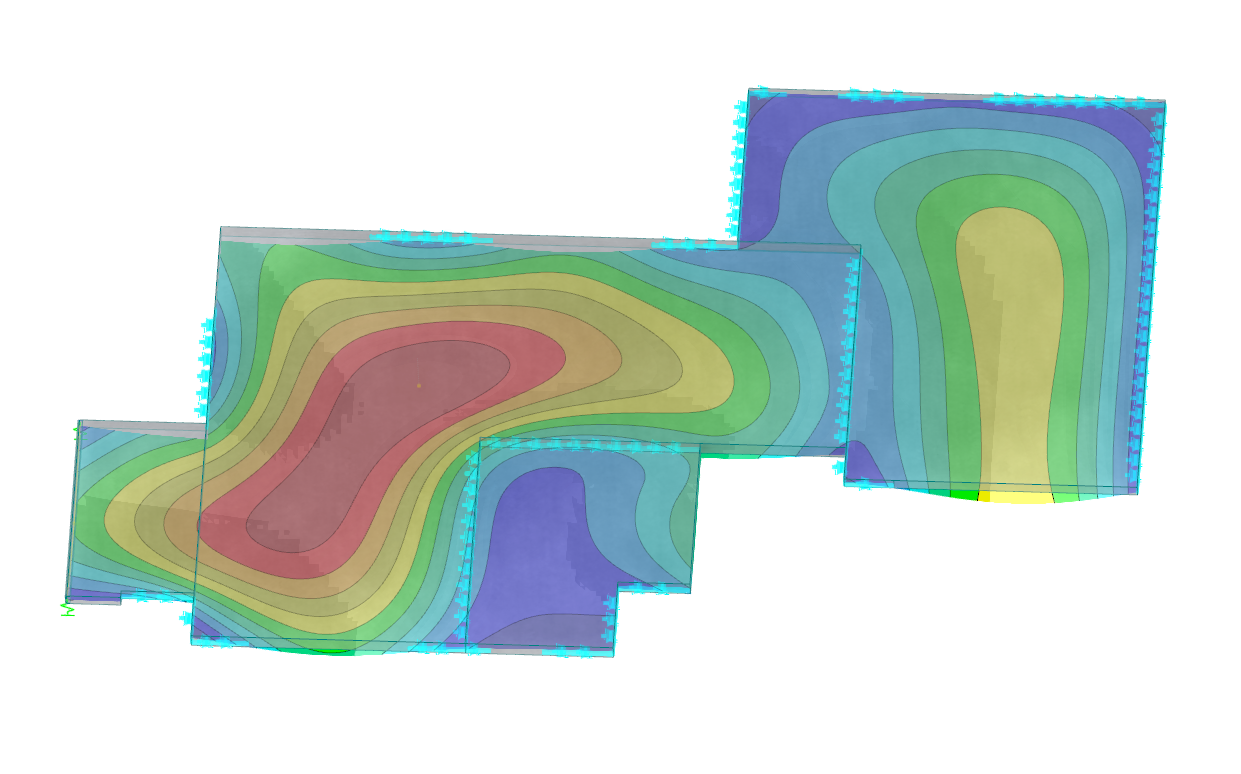

Unlike conventional one-way spanning floor systems, the floors were designed to transfer loads in two directions to the surrounding supports, resulting in four-way slab action. The structural behaviour of the floor systems was analysed using the finite element method (FEM) in RFEM 6.
The engineering scope covered the complete development of the filigree slab floors, from structural analysis and design through to reinforcement detailing and production information.
Engineering Scope
• First-floor filigree slab system
• Second-floor filigree slab system
• Four-way spanning slab analysis
• Finite element analysis in RFEM 6
Deliverables
• Structural Calculations
• Construction drawings
• Digital production data
